Original Hikvisiom DS-2FP2020-A HIFI Microphone Mic Audio Pickup for CCTV Camera hikvision DVR Mic Audio RCA Plug + DC Plug
SPECIFICATIONS
Brand Name: HSmartcam
Origin: Mainland China
Certification: CE
Choice: yes
semi_Choice: yes
Original Hikvisiom DS-2FP2020-A HIFI Microphone Mic Audio Pickup for CCTV Camera hikvision DVR Mic Audio RCA Plug + DC Plug

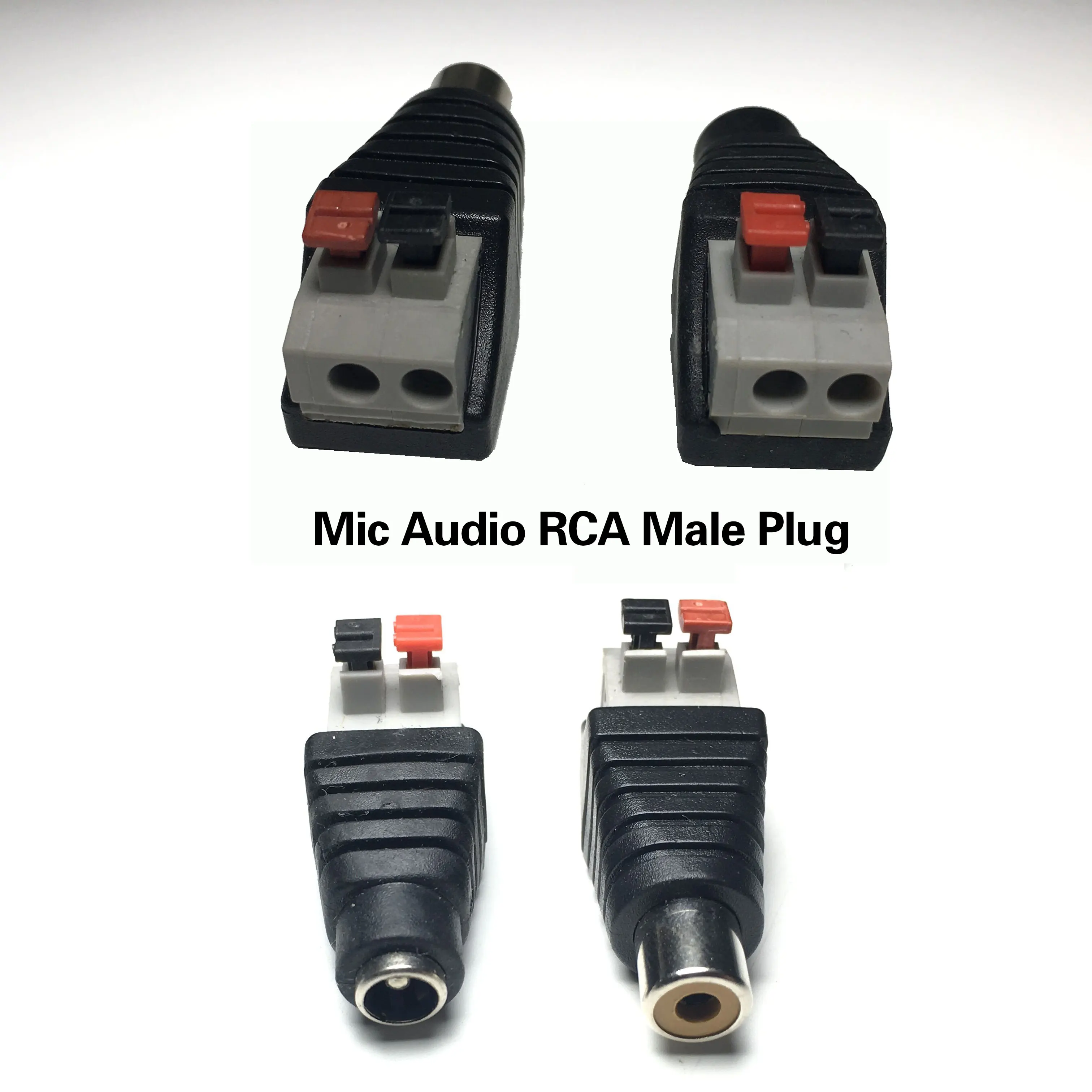

Free 2pcs : Mic Audio RCA Male Plug + DC Power Jack Connector
Buyer Questions & Answers:
1, Hello, I think this product is an original Hikvision isn't it?
Yes, it's original. After proper configuration, it works. There is a configuration video on YouTube.
2, здравствуйте, это уличный микрофон? на морозе работать будет?
не думаю что корпус в состоянии обеспечить герметичность.. но по качеству звучания один из лучших микрофонов что я сталкивался
Features
High sensitivity omdidirectional capacitor microphone omnidirectioanl pickup sound clearly and naturally;
Built-in lightning protection, reverse polarity protection and electrostatic protection;
RoHS compliant, without hazardous substances banned by the EU;
Compliant with EU CE standards, US FCC certification.
Specification
|
Model Parameters |
DS-2FP2020 |
HI-FI Microphone for CCTV | |
Pickup range |
70 sq.m |
Audio transmission distance |
3000m |
Sensitivity |
-34dB |
Frequency response |
20Hz～20KHz |
Directivity characteristics |
Omnidirectional |
SNR |
60dB（1m40 dB audio tone SPL）40dB(10m 40 dB audio tone SPL)1KHz at 1 Pa |
Dynamic Range |
70dB(1KHz at Max dB SPL) |
Maximum sound pressure |
100dB SPL（1KHz，THD 1%） |
Output impedance |
600 ohm unbalanced |
Output signal amplitude |
2.5Vpp/-25dB |
Microphones |
Capacitor microphone diaphragm |
The signal processing circuit |
ANC ambient noise cancellation technology |
Protective Circuit |
30KV Air contact ESD, lightning protection, reverse polarity protection; |
Drive Capability |
Built-in pre-amplifier circuit can directly drive headphones; |
Connection Mode |

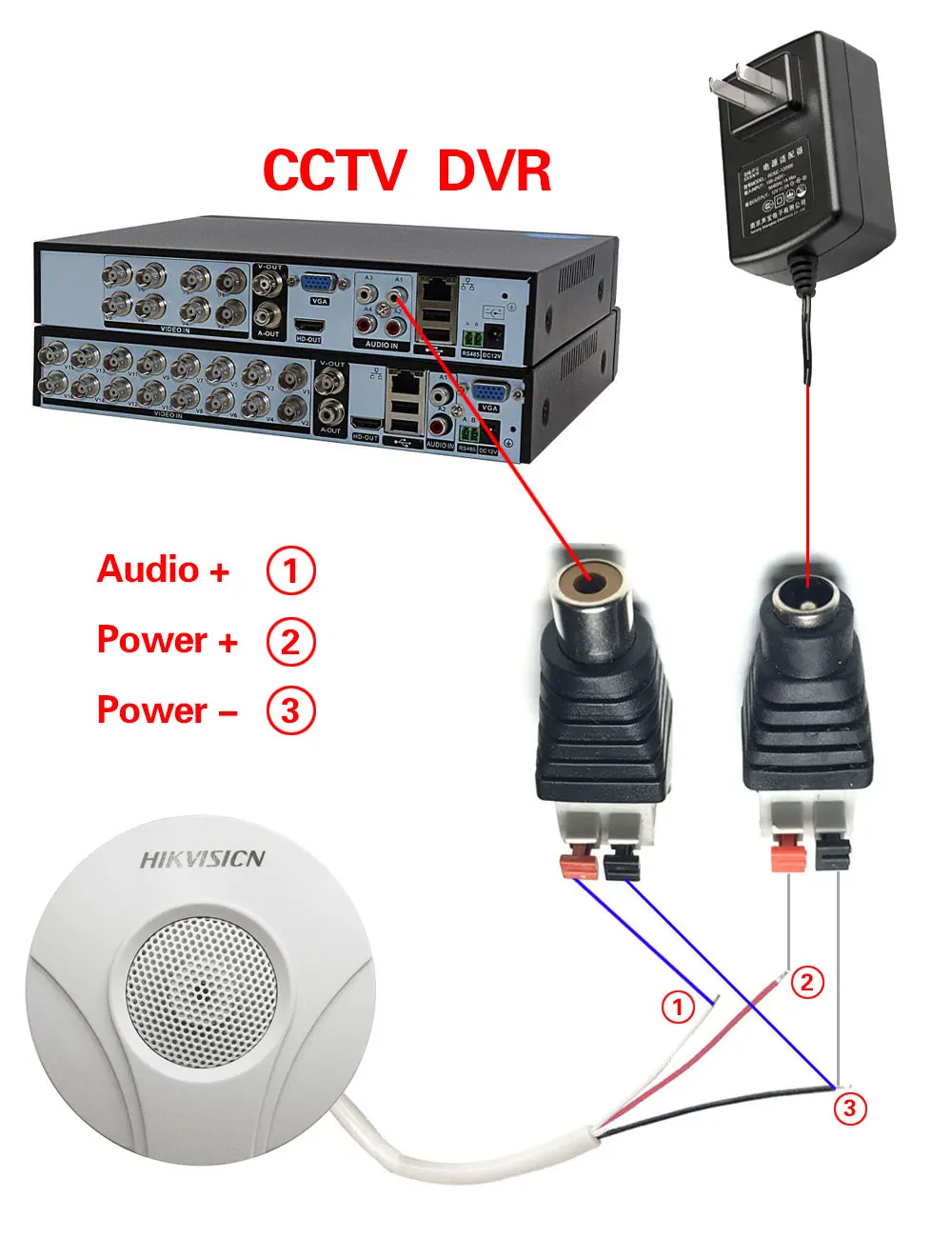

3 wires (Power, Audio out, GND) |
Transmission Cable |
3-core shielded cable 0.5mm² RVVP |
Supply Voltage |
DC 12V (9V-15V) |
Supply Current |
Max 25mA |
Working Temperature |
-25℃～70℃ |
Installation Mode |
Fixed Pedestal Mounting |
Color |
White/Blue |
Shell Material |
PVC |
External Size |
Φ78mm×28mm |
Weight |
60g |
