SPECIFICATIONS
Brand Name: Lenovo
Lenovo Model: X5Q
Origin: Mainland China
High Definition: 3.0 Megapixels
Supported Operating Systems: Windows 8
Lens (mm): 3.6mm
Style: Box Camera
Connectivity: WIFI
Installation: Normal
Minimum Illumination(Lux): 0.001
Scene: Indoor and outdoor
Color Night Vision: YES
Megapixels: 5MP
Storage: None
Video Compression Format: H.264
IR Distance(m): 10M
Certification: CE
Color: WHITE
Power Mode: Mains Electricity
Alarm Action: Local Alarm
Movement Range(Tilt): Other
is_customized: No
Model Number: X5Q
Supported Mobile Systems: Android
Supported Mobile Systems: IOS
Smart home platform: Other
AI Functions: Smart Tracking
IP Rating: IP66
Special Features: Waterproof / Weatherproof
App name: Other
TF Card: None
Digital Zoom: 4X
Power Supply(V): 110-240V
Audio Output: 1CH RCA
Power Consumption(W): 3W
Sensor: CMOS
Sensor Brand: Sony/索尼
Operating Temperature: -10°-60°
Shell Material: plastic
Power Supply: Normal
Viewing Angle : 107°
Optical Zoom: none
Movement Range(Pan): 0°-360°
Rechargeable Battery: none
WiFi Connection Way: Camera WIFI Hotspot
APP: cam720
Resolution: 3MP or 5MP
Choice: yes
Lenovo 3MP 5MP PTZ WIFI IP Camera Audio CCTV Surveillance Smart Home Outdoor 4X Digital Zoom Color Night vision Waterproof
Type: WiFi Camera / Wireless Camera / CCTV Camera / Audio Camera / Infrared Camera / Video / video surveillance / Speed Zoom Camera /IP Camera/PTZ Camera
● Smart AI Humanoid detection: mixing line, area, two-way flow detection, the item triggers no alarm(3MP has normal motion detection only)
● Support DIY Alert Voice and Alarm Bell / Customized new speakers with loud volume (4w high power)
● Alarm Notification: APP messages notification, notification push(parts of phone brand supported, email notification not supported)
● Three Night modes Setting: IR mode, full-color infrared night vision, timed full color mode;
● Support AP Direct Connection / Wireless Connection / Wired Connection;
● WiFi Connection: the camera supports 2.4GHz WiFi (no sim card slot, 3G/4G/5G cellular network not supported)
● Wired Connection: the camera with RJ45 LAN port, you could also connect the camera with the network cable(when you without wifi);
● Support Vision 4 times magnification(only support 4x digital zoom, not 4x optical zoom) ；
● Supports full-time loop recording, when the Sd card is full, the old video will be covered automatically. (not yet Support Motion triggered Recording);
● Support SD Recording: Max 128G Micro SD card Record, data security is more stable ;
● Support motion detected recording: only newest version has this function, some old versions have no this function.
● P2P Remote Access/Multi-User: P2P technology let you be able to view the live footage wherever you are, just with the P2P account on the app via your Smartphone or tablet.
● PTZ: rotates 270° Horizontally and 90° Vertically.
● H.264 (3MP)
H.265 (5MP） new storage design, TF card storage is lower, more stable, and more durable;
●3MP Resolution: 2304x1296; 5MP resolution: 2960x1660
● Ceiling and wall mounting bracket: fits for different of install scenes.
● Free cam720 app （older joolink camera not compatible with cam720 app, but new camera could use old joolink app) or pc software control(click here to download VMS for PC);
● support ONVIF protocol, no access for web/http browser (Support Eseecloud / XMEye/Dahua/ Hikvision/...'s NVR or DVR system, NAS Surveilliance Station not supported yet)
●Power: 12V1A power plug(5.5*2.1mm head), EU/US/UK/AU plug is all available.( no battery inside)
Top & Side Dual Mount Bracket
This camera supports ceiling or wall installation, meet different install scenes.
PTZ Rotation Remote Control
3MP camera :270° horizontal viewing angle, 90 °Vertical viewing angle.
You can monitor your home in all directions. No angle can be out of the surveillance. Digital zoom (4x) function allows you to zoom in to see more details and zoom out to see the entire field of view.
1080P VS 3MP/5MP High Resolution
3MP image has more exquisite,better light saturation,lower noise and other advantages
Camera is built in microphone and speaker. This outdoor security camera allows you to have stable conversations through the App, you are enable to listen and talk with your families members, guests or scare off intruders when you are not home.
1. Normal night vision mode, the camera 4 infrared lights work. The night monitoring screen is black and white, but the day is color
2. Intelligent Full Color mode,the camera is infrared night vision as default. when someone walks and trigger the camera motion detection function, the white lights will be turned on and the infrared light will be turned off, and the full-color night vision is immediately switched on, can frighten thief. switch back to infrared night vision after 3 minutes.
3.timed color mode, white led always on, live page is colorful.
using hands Press and hold the screen to Zoom in/out to see more details.
Motion detection/ People detection
3MP camera have smart AI motion detection , when it detects moving object, it will follow the moving object automatically.
5MP camera have smart AI human detection , when it detects people, it will follow automatically.
it's fast and easy to connect with your smartphone.You can use WIFI connection or network cable connection
Local Connection mode(Stand-alone mode):
When no router at home, you could also connect with your phone via AP hotpot.
Share and Watch At the Same Time
It supports share with many people watching online at the same time, full of joy. record wonderful moments
Select‘Sharing’to enter the sharing settings and invite others to watch. The person being shared needs to download the cam720 APP, register an account and log in to view.

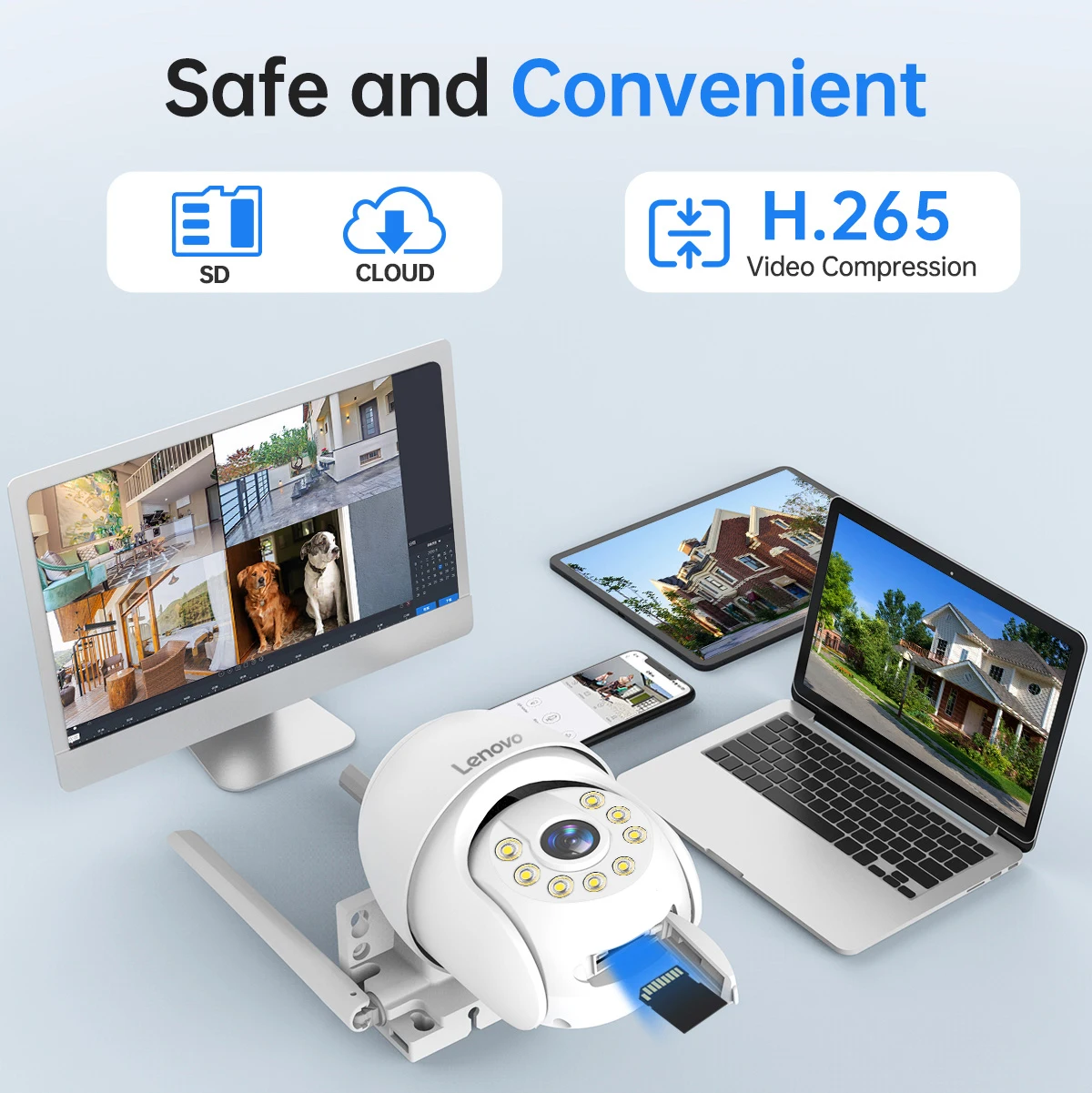

SD card storage(free) or cloud service( not free)
Different installation Method:
supports different installation scenes: wall, ceiling, light pole, ...
IP66 Waterproof & Dustproof
The shell is made of high-grade plastic , which is waterproof, sun-proof and dust-proof. It is suitable for any environment
Global power plug for different countries and areas:
3 meters long 12V1A 5.5*2.1mm power plug, please choose the proper type.
1 x Quick Installation Guide
1 x Power Adaptor (12V/1A)
Q : How should I do if failed to connect the camera and mobile?
A : 1. Please make sure the camera and mobile is in the same router;
2. Please check the router have the DHCP function enabled, and Connected WIFI;
3. Please make sure the WIFI signal is strong enough at the camera location, higher than 3 cells is much better;
4. If there is no problem mentioned above, but still not work. Please use the pin to press and hold the Reset button for 15s to reset the camera before connecting the camera. You will hear "Camera Reset " at a successful reset, and wait 5-8s you will hear "Camera starting up" then try to connect the WIFI again.
Q : Why I can't get the notifications on my phone?
A : Please turn back to camera setting and check if alarm button on.
Q: Is this a wireless camera, built in battery, no need of power supply?
A: No, it comes with a DC12V 1A power supply, no battery built-in.
Q: Why this camera not supported my Home Assistant or NAS system?
A: This camera only supports XMeye、EseeCloud NVR DVR's ONVIF protocol, other third party not for sure; please contact us for further confirmation.
Q: can it be viewed on PC
A: yes, here is the url to download the VMS software for pc: http://s.jooan.cc/VMS.exe
(note, only local access, can't control remotely)
Q: how many cameras can be added in the app
A: no qty limit, and you could add max 4 cameras in one view, then you can view 4 cameras at one time.
Q: How to set up the camera?
A:
1. Install cam720 from Googe play or iOS store app on your phone to allow all permissions like GPS location service etc;
2. Register a cam720 account with your email address (you need to register in the app, then enter the correct code), then login;
3. Power on the camera;
4. Click +, choose wifi or cable method to continue;
5. Waiting for while, then it will say: camera is online, then refresh the live page, the video will appear.
Q: How to add the camera to NVR via onvif?
1. configure camera to the network:
1) by Wifi, configure the network in the cam720 app;
2) by cable, can directly inserted the network cable to the port of the camera, or configure by cable in the app
3) 5MP by bluetooth, easy to set up.(3MP not supported yet)
2. Add in NVR system:
1) Make sure that the NVR and the camera are in the same network segment (under the same router), for example: 192.168.1.xx, the NVR uses the DHCP function to network
2) Use the ONVIF protocol to add, port: 8899, user name: admin, onvif password: check in cam720 app(there is a defaulted password, users can modify it by themselves, the operation path in the app: Settings /Camera Parameters/ Security Settings/change password)
